Research Update: Cotton Data Management

At a Glance

ETDS Progress

  • Research Topic: Data Management in Cotton Production​
  • PI: Glen Rains
  • Team: Peter Ngimbwa (PhD)​
  • Main Objective: Determine the most suitable NoSQL database for handling heterogeneous data generated in cotton production.​​

Motivation

  • Emerging technologies such as IoT, drones, and rovers in cotton production generate vast and heterogeneous data that requires efficient management. ​
  • Traditional databases struggle to handle heterogeneous datasets due to rigid schemas.​
  • NoSQL databases offer flexibility and scalability to handle heterogeneous data.

Proposed Solution

  • Use software performance testing techniques to evaluate theperformance of NoSQL databases, specifically MongoDB (a documentdatabase) and Neo4j (a graph database.​
  • The performance evaluation focused on response time, CPUutilization, and memory consumption.

Results to Date

Graphic of databse workflow. The graphic shows that "data sources" (IoT: soil & weather, rover: image & point cloud, drone: imagery data, manual: height, boll count. nodes count, etc.) are ingested into a box called "data loader (JMeter Scripts)." The data then is inserted into both "Database (MongoDB) and "Database (Neo4j)." The data goes through "workload test" and goes into a single "performance testing (JMeter: CRUD, Queries)." The data then goes through "collect results" into "Metric collection (CPU, RAM, response time)." The save logs go into "Result storage (CSV)" and are analyzed into "visualization & analysis."
Database workflow for cotton data
  • MongoDB significantly outperforms Neo4j in responsetime.​
  • Neo4j tends to use more CPU resources thanMongoDB; however, the difference is not significant.
  • MongoDB exhibits higher memory usage than Neo4j,but the difference is not significant.​

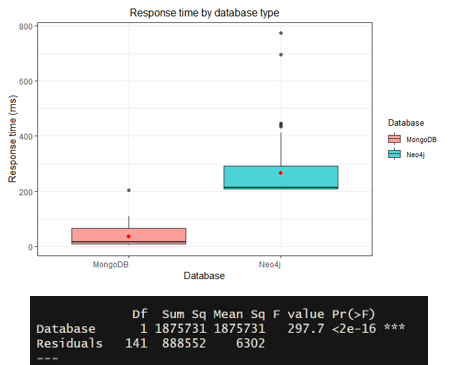

Response time by database type

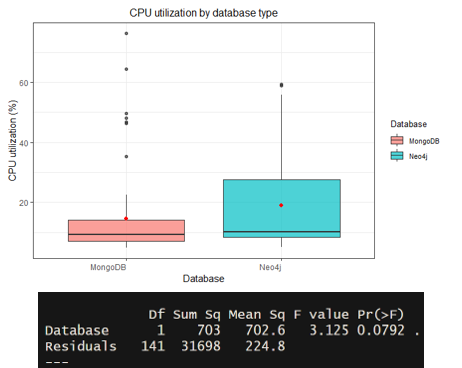

CPU utilization by database type
Memory utilization by database type

Next Steps

  • Increase the dataset to strengthen the significance of the analysis.
  • Conduct the analysis across different hardware platforms to ensure a more robust comparison.
  • Incorporate a vector database into the evaluation for a more comprehensive comparison.​

Citation

Ngimbwa, P.C., Mwitta, C.J., Kiobia, D.O., Pengsheng, J., and Rains, G.C., 2025. A comparative analysis of document and graph databases for efficient data management in cotton production. 2025 Beltwide Cotton Conferences, New Orleans, LA.
